Photoelectric complementary control systems automatically switch between solar and grid power by detecting sunlight intensity through sensors. These systems rely on light-dependent resistors and irradiance measurements to determine when to draw from photovoltaic sources versus utility power. Understanding how this automatic switching works helps engineers, system integrators, and facility managers design more reliable hybrid power solutions that maximize solar utilization while maintaining continuous load supply.

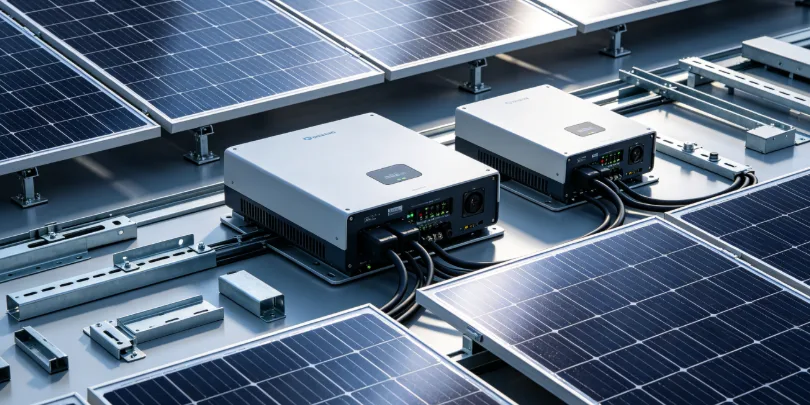

What Is a Photoelectric Complementary Control System?
A photoelectric complementary control system integrates solar photovoltaic generation with grid or battery backup to ensure uninterrupted power delivery. The system continuously monitors environmental light conditions through photoelectric sensors and adjusts its operating mode accordingly. When sunlight is sufficient, the system prioritizes solar power and reduces grid dependency. When light levels drop below a defined threshold, the controller seamlessly transitions to grid or battery power without interrupting connected loads.
These systems are widely deployed in outdoor lighting, telecommunications base stations, remote monitoring equipment, and residential energy setups. The core intelligence lies in the controller, which evaluates sensor data and executes switching logic based on preconfigured parameters such as voltage levels, irradiance values, and load demands.
Core Components Enabling Automatic Switching
Three primary components work together to enable automatic sunlight-based switching in photoelectric systems.
Photoelectric Sensors and Light Detection
Photoelectric sensors—typically cadmium sulfide (CdS) photoresistors or silicon photodiodes—are mounted on the system enclosure or near the solar panel surface. These sensors measure ambient light intensity in lux or watts per square meter. A photoresistor’s resistance decreases as illuminance increases, generating an analog signal that the controller interprets. Silicon photodiodes offer greater linearity and temperature stability, making them suitable for precision applications where irradiance data must correlate directly with panel output.
Microcontroller or DSP-Based Control Unit
The control unit processes sensor inputs and executes switching decisions. Modern controllers use microcontroller units (MCUs) or digital signal processors (DSPs) with built-in analog-to-digital converters (ADCs). These devices compare measured light values against user-defined thresholds—commonly ranging from 10 lux (dusk) to 100–500 lux (dawn)—and trigger state changes in power relays or solid-state switches. hysteresis bands prevent rapid toggling near threshold boundaries, ensuring stable operation during transitional periods such as cloud passing.
Power Switching Hardware
Switching between power sources is executed by contactors, relays, or metal-oxide-semiconductor field-effect transistors (MOSFETs). Electromechanical contactors handle high-current grid connections, while solid-state relays enable faster, silent switching for low-power applications. The switching hardware must meet specific electrical endurance ratings—typically 100,000 operations for grid-intertied systems—because daily cycling subjects components to significant mechanical stress.
The Automatic Switching Process: Step by Step
The automatic switching workflow follows a predictable sequence driven by sunlight availability and system state.
Step 1: Daytime Mode — Solar Power Priority
During daylight hours, the photoelectric sensor detects light levels above the defined daytime threshold. The controller activates the solar charging circuit and routes photovoltaic output to the load. If the solar array generates surplus power beyond load requirements, the system directs excess energy to battery storage for later use. Grid connection remains dormant, minimizing grid dependency and reducing operational costs.
Step 2: Transition Detection — Sensing Declining Irradiance
As afternoon progresses, ambient light gradually decreases. The sensor registers a falling illuminance value and feeds this data to the controller. When the measured value approaches the designated twilight threshold—typically 30–50 lux depending on geographic latitude and user preference—the controller initiates a countdown timer. This timer introduces a deliberate delay, often 5–15 minutes, to avoid false triggers from temporary cloud cover or passing shadows.
Step 3: Nighttime Mode — Grid or Battery Takeover
When illuminance falls below the nighttime threshold and the delay timer expires, the controller opens the solar circuit and closes the grid or battery relay. This switching event typically completes within 20–100 milliseconds for solid-state systems, fast enough to prevent visible flicker in lighting loads. In battery-backed configurations, the system may draw from stored energy first before engaging grid power, extending off-grid operation during clear-sky nights.
Step 4: Dawn Detection — Returning to Solar
The process reverses at sunrise. As ambient light rises and crosses the defined dawn threshold—often set slightly higher than the dusk threshold to prevent oscillation—the controller reconnects the solar circuit and gradually reduces grid or battery draw. A morning hysteresis period smooths the transition and ensures stable operation as panel output ramps up with increasing irradiance.
Key Parameters That Influence Switching Behavior
System designers must configure several parameters to achieve reliable automatic switching across varying climatic conditions.
| Parameter | Typical Range | Effect on System Behavior |
|---|---|---|
| Daytime lux threshold | 100–500 lux | Determines when solar power is activated |
| Dusk lux threshold | 10–50 lux | Triggers transition to grid/battery mode |
| Dawn lux threshold | 30–80 lux | Reactivates solar circuit; set higher than dusk |
| Hysteresis band | 10–30 lux | Prevents rapid switching near threshold boundaries |
| Delay timer | 5–15 minutes | Filters temporary light fluctuations from clouds or debris |
| Battery discharge depth | 50–80% DoD | Limits deep discharge to preserve battery cycle life |
Common Switching Topologies Compared
Photoelectric systems employ different circuit topologies depending on power capacity, reliability requirements, and cost constraints.
| Topology | Switching Method | Typical Application | Advantages | Limitations |
|---|---|---|---|---|
| Direct relay switching | Electromechanical contactors | Street lighting, signage | Simple, low cost, handles high current | Mechanical wear, slower response |
| Solid-state switching | MOSFET / IGBT modules | Telecom, precision electronics | Fast, silent, high cycle life | Higher cost, thermal management needed |
| Hybrid switching | Relay for AC + SSR for DC | Residential hybrid inverters | Combines reliability and speed | Complex control logic |
| MPPT-integrated switching | Digital controller + DC-DC converter | Solar + battery systems | Optimizes panel power extraction | Requires programming expertise |
Advantages of Photoelectric Auto-Switching Systems
Implementing automatic sunlight-based switching delivers measurable benefits across efficiency, reliability, and maintenance dimensions. The system eliminates manual intervention, reducing labor costs associated with daily operation checks. By switching to solar whenever conditions permit, facilities lower their grid energy consumption and associated electricity expenses. In regions with time-of-use tariffs, auto-switching can strategically minimize grid draw during peak pricing windows.
From a reliability standpoint, auto-switching ensures continuous operation even when grid outages occur during nighttime hours in battery-backed configurations. This capability is critical for safety lighting, emergency communications, and off-grid monitoring stations where human intervention is impractical.
Maintenance also improves because auto-switching systems expose power components to less thermal and electrical stress compared to permanently energized configurations. Grid-side contactors experience fewer hours of continuous operation, extending their service life and reducing replacement frequency.
Typical Application Scenarios
Photoelectric auto-switching finds application across diverse sectors, each with distinct operational demands.
Solar street lighting: These systems combine LED luminaires with monocrystalline or polycrystalline solar panels and lead-acid or lithium-ion batteries. The photoelectric controller activates the light at dusk, manages overnight dimming to conserve energy, and reconnects the panel for charging at dawn.
Telecommunications base stations: Remote tower sites rely on hybrid power systems combining solar arrays with diesel generators or grid connections. Auto-switching logic prioritizes solar during daylight, seamlessly engaging backup generation when battery state-of-charge drops below a critical threshold during extended cloudy periods.
Agricultural and irrigation systems: Solar-powered water pumps equipped with auto-switching controllers draw directly from solar panels during the day and transition to battery or grid power during early morning or late evening irrigation cycles.
Residential energy storage: Home solar-plus-storage systems use light sensors or irradiance data to determine whether to supply loads directly from panels, draw from battery reserves, or import grid power. Some advanced systems integrate weather forecast data to pre-charge batteries before anticipated cloudy periods.
Design Considerations for Reliable Switching
Engineers designing photoelectric auto-switching systems should address several practical concerns to ensure long-term performance. Sensor placement significantly affects accuracy—mounting the photoelectric sensor on the solar panel frame provides the most relevant data because it reflects actual panel illumination rather than ambient diffuse light. However, this placement also subjects the sensor to the same environmental extremes as the panel, including temperature cycling and UV exposure, so selecting a sensor with appropriate environmental ratings is essential.
Threshold calibration must account for geographic location and seasonal variation in solar angle and day length. Systems deployed at high latitudes experience dramatically longer twilight periods compared to equatorial regions, requiring wider hysteresis bands to prevent spurious switching events. Adjustable thresholds, whether hardware potentiometers or software-configurable parameters, provide flexibility during commissioning.
Fault detection and reporting enhance system reliability. Implementing overcurrent protection, reverse polarity safeguards, and sensor diagnostics ensures that switching decisions remain accurate even when individual components degrade. Modern controllers increasingly support remote monitoring through RS-485, Modbus, or cellular IoT interfaces, enabling operators to receive alerts when switching events deviate from expected patterns.
Frequently Asked Questions
What is the typical response time for a photoelectric control system to switch from solar to grid power?
Most solid-state switching systems complete the transition within 20 to 100 milliseconds. Electromechanical relay-based systems may require 100 to 500 milliseconds. For lighting applications, both ranges are generally imperceptible to users.
Can photoelectric systems switch based on cloud cover during daytime?
Basic photoelectric systems respond only to absolute light levels and may not distinguish between dusk and heavy cloud cover. Advanced systems integrate both irradiance sensors and panel voltage monitoring to detect rapid output changes caused by clouds and temporarily hold state to prevent unnecessary switching.
What happens if the photoelectric sensor fails or becomes obstructed?
A failed sensor can cause the system to remain locked in a single mode—either always solar or always grid. Most systems include watchdog timers or dual-sensor configurations to detect sensor anomalies. Some controllers revert to a configurable safe state, typically grid power, upon sensor failure detection.
How does temperature affect photoelectric switching accuracy?
Cadmium sulfide photoresistors exhibit significant temperature coefficients, with resistance increasing at lower temperatures. This behavior can shift effective switching thresholds by 10–20 lux across a 40°C temperature range. Silicon photodiodes offer superior thermal stability and are preferred in precision applications.
Are photoelectric auto-switching systems suitable for off-grid installations without battery storage?
Yes, but with limitations. Systems without batteries must switch directly between solar and grid based on panel output. When solar production drops below the load requirement, an instantaneous mismatch occurs unless the system includes rapid-load shedding or the load is tolerant of brief power interruptions.
